第4步 集成 mybatis plus

mybatis plus 是什么

1, 数据我建议使用mybatis plus 简单的业务逻辑通过方法调用即可完成数据的处理。复杂的自己可以编写脚本完成。同时他集成了分页工具。操作简单。

setSqlSelect 设置 SELECT 查询字段
where WHERE 语句，拼接 + WHERE 条件
and AND 语句，拼接 + AND 字段=值
andNew AND 语句，拼接 + AND (字段=值)
or OR 语句，拼接 + OR 字段=值
orNew OR 语句，拼接 + OR (字段=值)
eq 等于=
allEq 基于 map 内容等于=
ne 不等于<>
gt 大于>
ge 大于等于>=
lt 小于<
le 小于等于<=
like 模糊查询 LIKE
notLike 模糊查询 NOT LIKE
in IN 查询
notIn NOT IN 查询
isNull NULL 值查询
isNotNull IS NOT NULL
groupBy 分组 GROUP BY
having HAVING 关键词
orderBy 排序 ORDER BY
orderAsc ASC 排序 ORDER BY ** 多字段排序**
orderDesc DESC 排序 ORDER BY
exists EXISTS 条件语句
notExists NOT EXISTS 条件语句
between BETWEEN 条件语句
notBetween NOT BETWEEN 条件语句
addFilter 自由拼接 SQL
last 拼接在最后，例如：last(“LIMIT 1”)

pom.xml 配置

我们修改pom.xml 配置 。他自带的代码生成器,不建议使用。最好自己能写一个一样的工具。这样修改起来方便，还不会生成冗余代码。工具过多的使用就会导致质量下降。

<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
	<groupId>com.alibaba</groupId>
	<artifactId>druid-spring-boot-starter</artifactId>
	<version>1.1.10</version>
</dependency>
<dependency>
	<groupId>com.baomidou</groupId>
	<artifactId>mybatis-plus-boot-starter</artifactId>
	<version>3.1.0</version>
</dependency>
<!-- freemarker -->
<dependency>
	<groupId>org.freemarker</groupId>
	<artifactId>freemarker</artifactId>
</dependency>

application-mybatisplus.yml 配置

增加配置文件：application-mybatisplus.yml resource 下面增加 mapper文件夹

mybatis-plus:
  global-config:
    db-config:
      id-type: auto
      field-strategy: not_empty
      table-underline: true
      db-type: mysql
      logic-delete-value: 1 # 逻辑已删除值(默认为 1)
      logic-not-delete-value: 0 # 逻辑未删除值(默认为 0)
  mapper-locations: classpath:/mapper/*.xml

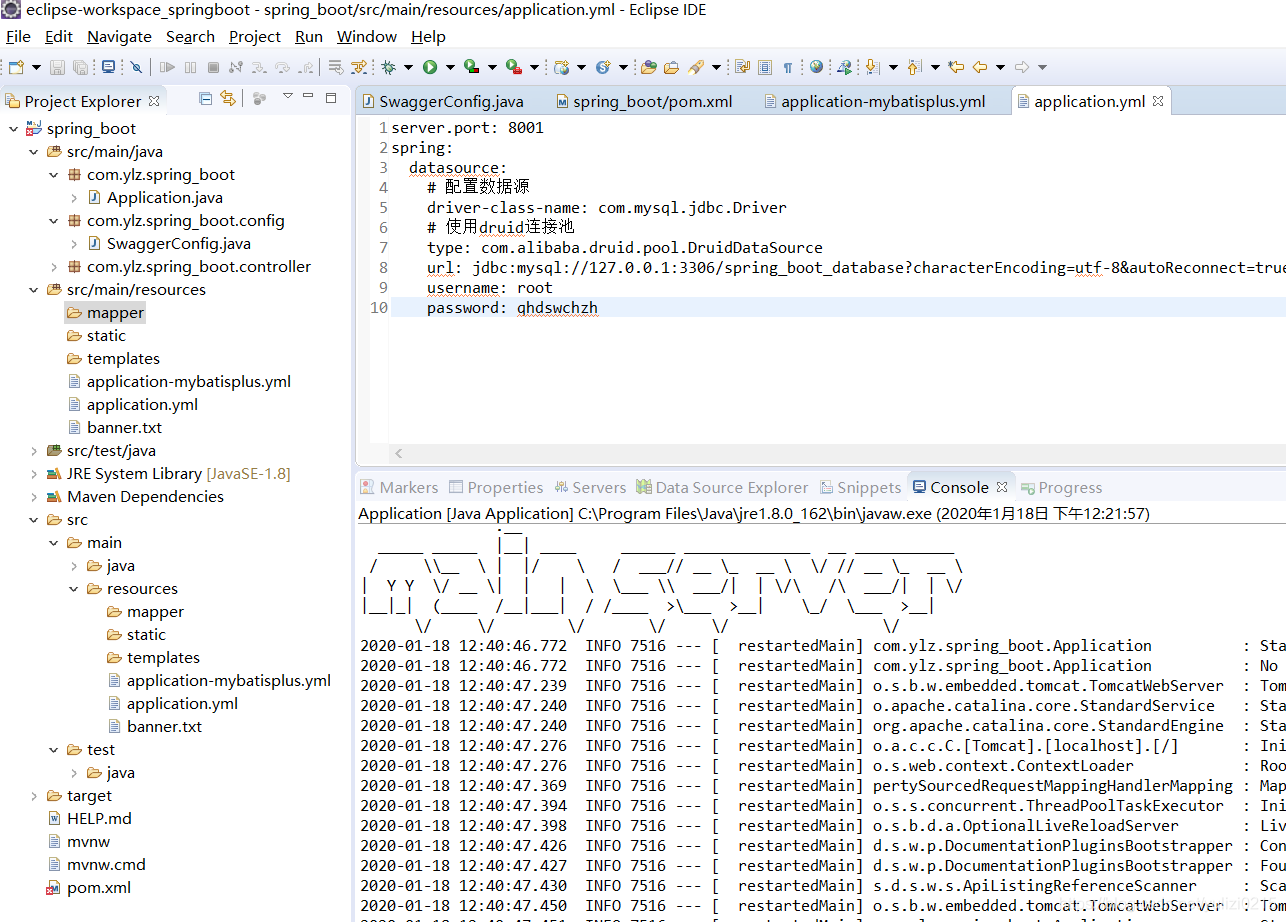

修改 配置文件 application.yml

server.port: 8001
spring:
  datasource:
    # 配置数据源
    driver-class-name: com.mysql.cj.jdbc.Driver
    # 使用druid连接池
    type: com.alibaba.druid.pool.DruidDataSource
    url: jdbc:mysql://127.0.0.1:3306/spring_boot_database?characterEncoding=utf-8&autoReconnect=true&failOverReadOnly=false&useSSL=true&serverTimezone=UTC
    username: root
    password: qhdswchzh
mybatis-plus:
   configuration:
     log-impl: org.apache.ibatis.logging.stdout.StdOutImpl    #开启sql 查询输出

修改 pom.xml 增加 增加 打包时拷贝MyBatis的映射文件 对照pom.xml文件修改即可。

<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>

		 <!-- 打包时拷贝MyBatis的映射文件 -->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/mapper/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                    <includes>
                        <include>**/*.*</include>
                    </includes>
                    <filtering>true</filtering>
            </resource>
        </resources>

	</build>

增加配置 MyBatisPlusConfig.java

package com.ylz.spring_boot.config;

import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;

import com.baomidou.mybatisplus.core.injector.ISqlInjector;
import com.baomidou.mybatisplus.extension.injector.LogicSqlInjector;
import com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor;
import com.baomidou.mybatisplus.extension.plugins.PerformanceInterceptor;

@Configuration
@MapperScan("com.ylz.spring_boot.mapper")
public class MyBatisPlusConfig {

    private final static Logger logger = LoggerFactory.getLogger(MyBatisPlusConfig.class);


    @Bean
    public PaginationInterceptor paginationInterceptor() {
        logger.debug("注册分页插件");
        return new PaginationInterceptor();
    }


    @Bean
    @Profile({"test"})// 设置 dev test 环境开启
    public PerformanceInterceptor performanceInterceptor() {
        return new PerformanceInterceptor();
    }


    @Bean
    public ISqlInjector sqlInjector() {
        return new LogicSqlInjector();
    }

}

编写 model dao daoimpl mapper 因为我使用的是mybatis plus 所以 方法不一样。 mapper.xml文件内容可以没有。我这里都写出来了。因为简单的insert update delete 可以用方法解决。

model
SysUser.java

package com.ylz.spring_boot.model;

import java.util.Date;

import com.baomidou.mybatisplus.extension.activerecord.Model;

public class SysUser  extends Model<SysUser> {
    private Long id;

    private String name;

    private String nickName;

    private String avatar;

    private String password;

    private String salt;

    private String email;

    private String mobile;

    private Byte status;

    private Long deptId;

    private String createBy;

    private Date createTime;

    private String lastUpdateBy;

    private Date lastUpdateTime;

    private Byte delFlag;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public String getNickName() {
        return nickName;
    }

    public void setNickName(String nickName) {
        this.nickName = nickName == null ? null : nickName.trim();
    }

    public String getAvatar() {
        return avatar;
    }

    public void setAvatar(String avatar) {
        this.avatar = avatar == null ? null : avatar.trim();
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password == null ? null : password.trim();
    }

    public String getSalt() {
        return salt;
    }

    public void setSalt(String salt) {
        this.salt = salt == null ? null : salt.trim();
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email == null ? null : email.trim();
    }

    public String getMobile() {
        return mobile;
    }

    public void setMobile(String mobile) {
        this.mobile = mobile == null ? null : mobile.trim();
    }

    public Byte getStatus() {
        return status;
    }

    public void setStatus(Byte status) {
        this.status = status;
    }

    public Long getDeptId() {
        return deptId;
    }

    public void setDeptId(Long deptId) {
        this.deptId = deptId;
    }

    public String getCreateBy() {
        return createBy;
    }

    public void setCreateBy(String createBy) {
        this.createBy = createBy == null ? null : createBy.trim();
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public String getLastUpdateBy() {
        return lastUpdateBy;
    }

    public void setLastUpdateBy(String lastUpdateBy) {
        this.lastUpdateBy = lastUpdateBy == null ? null : lastUpdateBy.trim();
    }

    public Date getLastUpdateTime() {
        return lastUpdateTime;
    }

    public void setLastUpdateTime(Date lastUpdateTime) {
        this.lastUpdateTime = lastUpdateTime;
    }

    public Byte getDelFlag() {
        return delFlag;
    }

    public void setDelFlag(Byte delFlag) {
        this.delFlag = delFlag;
    }
}

mapper
SysUserMapper.java

package com.ylz.spring_boot.mapper;

import java.util.List;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.ylz.spring_boot.model.SysUser;



public interface SysUserMapper extends BaseMapper<SysUser> {
    int deleteByPrimaryKey(Long id);

    int insert(SysUser record);

    int insertSelective(SysUser record);

    SysUser selectByPrimaryKey(Long id);

    int updateByPrimaryKeySelective(SysUser record);

    int updateByPrimaryKey(SysUser record);

    /**
     * 查询全部
     * @return
     */
    List<SysUser> findAll();
}

service
SysUserService.java

package com.ylz.spring_boot.service;

import java.util.List;

import com.baomidou.mybatisplus.extension.service.IService;
import com.ylz.spring_boot.model.SysUser;


public interface SysUserService extends IService<SysUser> {

    /**
     * 查找所有用户
     * @return
     */
    List<SysUser> findAll();

}

service impl
SysUserServiceImpl.java

package com.ylz.spring_boot.service.impl;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.ylz.spring_boot.mapper.SysUserMapper;
import com.ylz.spring_boot.model.SysUser;
import com.ylz.spring_boot.service.SysUserService;



@Service
public class SysUserServiceImpl extends ServiceImpl<SysUserMapper, SysUser> implements SysUserService {

	@Override
	public List<SysUser> findAll() {
		// TODO Auto-generated method stub
		return null;
	}


}

mapper.xml
SysUserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ylz.spring_boot.mapper.SysUserMapper">
  <resultMap id="BaseResultMap" type="com.ylz.spring_boot.model.SysUser">
    <id column="id" jdbcType="BIGINT" property="id" />
    <result column="name" jdbcType="VARCHAR" property="name" />
    <result column="nick_name" jdbcType="VARCHAR" property="nickName" />
    <result column="avatar" jdbcType="VARCHAR" property="avatar" />
    <result column="password" jdbcType="VARCHAR" property="password" />
    <result column="salt" jdbcType="VARCHAR" property="salt" />
    <result column="email" jdbcType="VARCHAR" property="email" />
    <result column="mobile" jdbcType="VARCHAR" property="mobile" />
    <result column="status" jdbcType="TINYINT" property="status" />
    <result column="dept_id" jdbcType="BIGINT" property="deptId" />
    <result column="create_by" jdbcType="VARCHAR" property="createBy" />
    <result column="create_time" jdbcType="TIMESTAMP" property="createTime" />
    <result column="last_update_by" jdbcType="VARCHAR" property="lastUpdateBy" />
    <result column="last_update_time" jdbcType="TIMESTAMP" property="lastUpdateTime" />
    <result column="del_flag" jdbcType="TINYINT" property="delFlag" />
  </resultMap>
  <sql id="Base_Column_List">
    id, name, nick_name, avatar, password, salt, email, mobile, status, dept_id, create_by,
    create_time, last_update_by, last_update_time, del_flag
  </sql>
  <select id="selectByPrimaryKey" parameterType="java.lang.Long" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from sys_user
    where id = #{id,jdbcType=BIGINT}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Long">
    delete from sys_user
    where id = #{id,jdbcType=BIGINT}
  </delete>
  <insert id="insert" parameterType="com.ylz.spring_boot.model.SysUser">
    insert into sys_user (id, name, nick_name,
      avatar, password, salt,
      email, mobile, status,
      dept_id, create_by, create_time,
      last_update_by, last_update_time, del_flag
      )
    values (#{id,jdbcType=BIGINT}, #{name,jdbcType=VARCHAR}, #{nickName,jdbcType=VARCHAR},
      #{avatar,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR}, #{salt,jdbcType=VARCHAR},
      #{email,jdbcType=VARCHAR}, #{mobile,jdbcType=VARCHAR}, #{status,jdbcType=TINYINT},
      #{deptId,jdbcType=BIGINT}, #{createBy,jdbcType=VARCHAR}, #{createTime,jdbcType=TIMESTAMP},
      #{lastUpdateBy,jdbcType=VARCHAR}, #{lastUpdateTime,jdbcType=TIMESTAMP}, #{delFlag,jdbcType=TINYINT}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.ylz.spring_boot.model.SysUser">
    insert into sys_user
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="id != null">
        id,
      </if>
      <if test="name != null">
        name,
      </if>
      <if test="nickName != null">
        nick_name,
      </if>
      <if test="avatar != null">
        avatar,
      </if>
      <if test="password != null">
        password,
      </if>
      <if test="salt != null">
        salt,
      </if>
      <if test="email != null">
        email,
      </if>
      <if test="mobile != null">
        mobile,
      </if>
      <if test="status != null">
        status,
      </if>
      <if test="deptId != null">
        dept_id,
      </if>
      <if test="createBy != null">
        create_by,
      </if>
      <if test="createTime != null">
        create_time,
      </if>
      <if test="lastUpdateBy != null">
        last_update_by,
      </if>
      <if test="lastUpdateTime != null">
        last_update_time,
      </if>
      <if test="delFlag != null">
        del_flag,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="id != null">
        #{id,jdbcType=BIGINT},
      </if>
      <if test="name != null">
        #{name,jdbcType=VARCHAR},
      </if>
      <if test="nickName != null">
        #{nickName,jdbcType=VARCHAR},
      </if>
      <if test="avatar != null">
        #{avatar,jdbcType=VARCHAR},
      </if>
      <if test="password != null">
        #{password,jdbcType=VARCHAR},
      </if>
      <if test="salt != null">
        #{salt,jdbcType=VARCHAR},
      </if>
      <if test="email != null">
        #{email,jdbcType=VARCHAR},
      </if>
      <if test="mobile != null">
        #{mobile,jdbcType=VARCHAR},
      </if>
      <if test="status != null">
        #{status,jdbcType=TINYINT},
      </if>
      <if test="deptId != null">
        #{deptId,jdbcType=BIGINT},
      </if>
      <if test="createBy != null">
        #{createBy,jdbcType=VARCHAR},
      </if>
      <if test="createTime != null">
        #{createTime,jdbcType=TIMESTAMP},
      </if>
      <if test="lastUpdateBy != null">
        #{lastUpdateBy,jdbcType=VARCHAR},
      </if>
      <if test="lastUpdateTime != null">
        #{lastUpdateTime,jdbcType=TIMESTAMP},
      </if>
      <if test="delFlag != null">
        #{delFlag,jdbcType=TINYINT},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.ylz.spring_boot.model.SysUser">
    update sys_user
    <set>
      <if test="name != null">
        name = #{name,jdbcType=VARCHAR},
      </if>
      <if test="nickName != null">
        nick_name = #{nickName,jdbcType=VARCHAR},
      </if>
      <if test="avatar != null">
        avatar = #{avatar,jdbcType=VARCHAR},
      </if>
      <if test="password != null">
        password = #{password,jdbcType=VARCHAR},
      </if>
      <if test="salt != null">
        salt = #{salt,jdbcType=VARCHAR},
      </if>
      <if test="email != null">
        email = #{email,jdbcType=VARCHAR},
      </if>
      <if test="mobile != null">
        mobile = #{mobile,jdbcType=VARCHAR},
      </if>
      <if test="status != null">
        status = #{status,jdbcType=TINYINT},
      </if>
      <if test="deptId != null">
        dept_id = #{deptId,jdbcType=BIGINT},
      </if>
      <if test="createBy != null">
        create_by = #{createBy,jdbcType=VARCHAR},
      </if>
      <if test="createTime != null">
        create_time = #{createTime,jdbcType=TIMESTAMP},
      </if>
      <if test="lastUpdateBy != null">
        last_update_by = #{lastUpdateBy,jdbcType=VARCHAR},
      </if>
      <if test="lastUpdateTime != null">
        last_update_time = #{lastUpdateTime,jdbcType=TIMESTAMP},
      </if>
      <if test="delFlag != null">
        del_flag = #{delFlag,jdbcType=TINYINT},
      </if>
    </set>
    where id = #{id,jdbcType=BIGINT}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.ylz.spring_boot.model.SysUser">
    update sys_user
    set name = #{name,jdbcType=VARCHAR},
      nick_name = #{nickName,jdbcType=VARCHAR},
      avatar = #{avatar,jdbcType=VARCHAR},
      password = #{password,jdbcType=VARCHAR},
      salt = #{salt,jdbcType=VARCHAR},
      email = #{email,jdbcType=VARCHAR},
      mobile = #{mobile,jdbcType=VARCHAR},
      status = #{status,jdbcType=TINYINT},
      dept_id = #{deptId,jdbcType=BIGINT},
      create_by = #{createBy,jdbcType=VARCHAR},
      create_time = #{createTime,jdbcType=TIMESTAMP},
      last_update_by = #{lastUpdateBy,jdbcType=VARCHAR},
      last_update_time = #{lastUpdateTime,jdbcType=TIMESTAMP},
      del_flag = #{delFlag,jdbcType=TINYINT}
    where id = #{id,jdbcType=BIGINT}
  </update>
  <select id="findAll" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from sys_user
  </select>
</mapper>

启动项目通过 swagger 调用接口测试。数据有返回值
